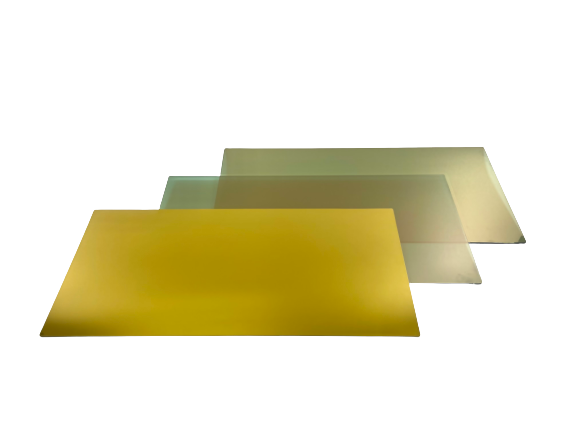

Heat Blocking Face Shield

Menu

For Fire Fighting

TO APPROACH HIGH-TEMPERATURE RADIANT HEAT AT THE SCENE OF A FIRE

EN 1486:2007
EN 167:2001
EN 168:2001
EN 171:2002

Standard Specification
Material
PC / PES
Standard Size(mm)
320 x 150 x 2
Shape
Flat
Shade #
2.5 / 3.0 / 4.0 / 5.0

KFI(Korea Fire Institute) Transmittance Standards (EN171:2002)

The light transmittance test of a face shield shall have a luminous transmittance of not less than 1.2% and not more than 29.1%, and the infrared transmittance according to the luminous transmittance shall not be more than the following table.

Shade # Luminous Transmittance(%) (380nm~780nm) Infrared Transmittance(%) (780nm~1400nm) Ifrared Transmittance(%) (780nm~2000nm)
KFI
ILJIN OPTEC
KFI
ILJIN OPTEC
2.5
29.1 ~ 17.8
2.9

0.4
32.3

0.2
3.0
17.8 ~ 8.5
1.9

0.2
22.9

0.04
4.0
8.5 ~ 3.2
1.2

0.05
15.9

0.006
5.0
3.2 ~ 1.2
0.71

0.01
10.6

0.001
  • It is a product that has been tested and certified by a certification authority in a partner company.
  • Size and thickness can be customized at the request of the customer.
