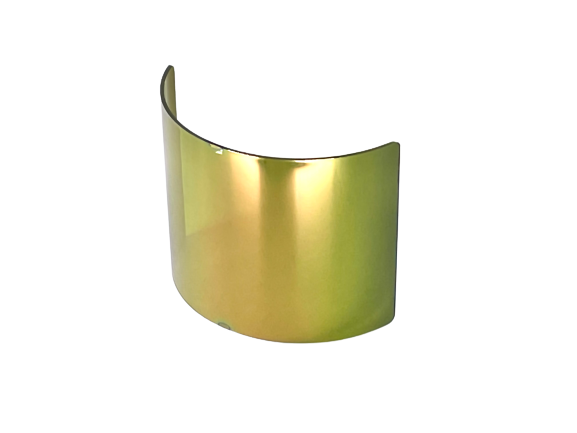

Heat Blocking Face Shield

Menu

For Industrial Use

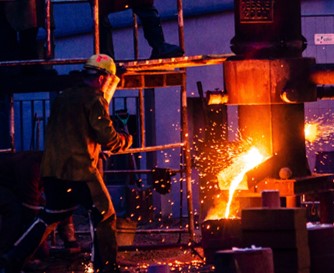

CONTINUOUS REFLECTION OF HEAT GENERATED AT HOT WORK SITES

EN 1486:2007
EN 167:2001
EN 168:2001
EN 171:2002

Standard Specification
Material
PC / PES
Standard Size(mm)
245 x 140 x 3 / 345 x 200 x 3 / 350 x 200 x 3
Shape
Curved
Shade #
2.0 / 2.5 / 3.0 / 4.0 / 5.0

KCS(Korean Chemical Society) Transmittance Standards

The light transmittance test of a face lens shall have a luminous transmittance of not less than 1.2% and not more than 43.2%, and the infrared transmittance according to the luminous transmittance shall not be more than the following table.

Shade # Luminous Transmittance(%) (380nm~780nm) Infrared Transmittance(%) (780nm~1300nm) Ifrared Transmittance(%) (1300nm~2000nm)
KFI
ILJIN OPTEC
KFI
ILJIN OPTEC
2.0
43.2 ~ 29.1
21

0.7
13

0.4
2.5
29.1 ~ 17.8
15

0.14
9.6

0.016
3.0
17.8 ~ 8.5
12

0.1
8.5

0.001
4.0
8.5 ~ 3.2
6.4

0.008
5.4

0.0004
5.0
3.2 ~ 1.2
3.2

0.002
3.2

0.0001
  • It is a product that has been tested and certified by a certification authority in a partner company.
  • Size and thickness can be customized at the request of the customer.
