Optical Coating
Transparent PC Heat Blocking
It is a coating technology that aims to prevent deformation of the PC by reflecting heat on the transparent PC surface, and is a vacuum thin film technology that completely blocks ultraviolet and infrared, and maximizes visible light for visibility.
Principle
This is a vacuum thin film deposition technology that uses a vacuum thin film deposition machine to selectively penetrate or block the transmission rate of a specific wavelength band through interference phase distance by repeated coating of highly refractive chemicals and low refractive chemicals on the product.

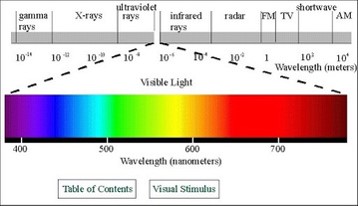

Wavelength Range of Light
Effect
- Ultraviolet (200–380 nm) transmission rate of 1% or less
- Visible light (380–780 nm) transmission rate of 83% or higher
- Infrared (780–2,000 nm) transmittance 12% or less
* Excellent effect of infrared (heat) blocking
Applcable fields
- Fire suit hood visors
- Air respirator face visors
- Industrial hood visors

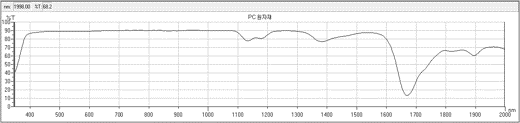

Transmittance of Before Coating

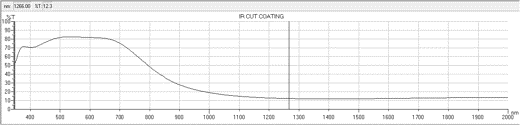

Transmittance of After Coating
